Eskimo Z51 Shark Engine Parts Explosion

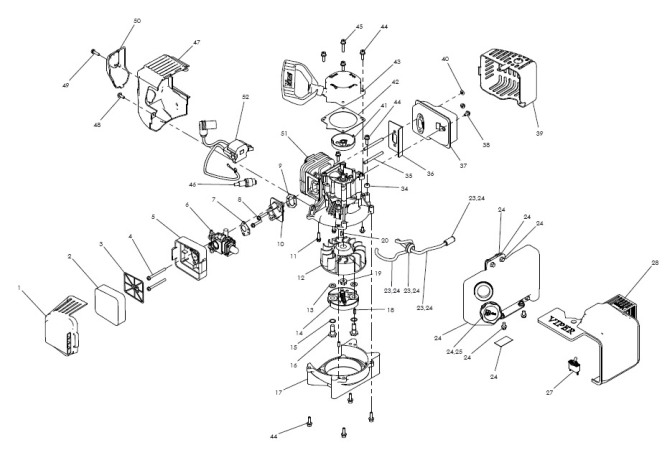

 Please choose the following SKU's for the corresponding number as shown above:
1-ARD3004161 - Air Filter Cover, No Switch Hole
2-ARD3004156 - Element Air Filter Block Foam (Viper)
3-ARD3004157 - Frame Air Filter Reinforcement (Viper)
4-ARD300456 - Bolt (M5 X 50MM HH W/Washer ZN)
5-ARD3004160 - Base Air Filter Primer Hole Assy ( 2-Cycle)
6-ARD300486 - Carburetor 43 and 51.7cc 2-Cycle - Complete
*6-RCARBKIT - Carburetor Repair Kit - Primer Sold Separately
*6-RM4388014 - Replacement Primer Bulb
7-ARD300479 - Carburetor Gasket (Viper 43/51/71)
8-ARD300438 - Bolt M5 X 25MM Washer
9-ARD300476 - Intake Gasket (Viper)
10-ARD300478 - Intake Windpipe (43/51.77cc Viper)
11-ARD300335 - Bolt (M5 X .8 X 20 HWH GR8.8 YL ZN F-T)
12-ARD11209 - Flywheel (43/51cc 2-Cycle Viper)
13-ARD300462 - Washer (15.8 X 8.4 X 1.6MM)
14-ARD300413 - Centrifugal Clutch Rotor Assy (Viper)
15-ARD300449 - Washer M8 Spring
16-ARD300450 - Bolt (M8 X 1.25 X 25 MM Shoulder 10MM ZN)
17-ARD3004110 - Mount Ring and Shroud (43/51.7cc HP)
18-ARD300467 - Pin Dowel (5MM Dia X 12 MM Long, Steel)
19-ARD300337 - Nut (M8 X 1.25MM HHF)
20-ARD300338 - Flywheel Key (Viper Engine)
23-ARD3004117 - Fuel Line Kit
24-ARD12758 - Gas Tank Kit - Comes with tank, fuel cap, brackets and fuel line kit
25-ARD11936 - Gas Cap Kit
27-ARD300524 - Toggle Barrel Switch (M12 X 1 Tabs 5MM)
28-ARD300332 - Tank Cover (Viper Engine)
34-ARD11189 - Spacer (M5 X 5MM)
35-ARD300493 - Stud (M6 X 5MM)
36-ARD300475 - Heat Shield Muffler Gasket (2-Cycle Viper)
37-Winter Muffler (51cc) *** No Longer Available
38-ARD3250 - Bolt (M5 X .8 X 12 MM PPHMS GR 8.8 ZN)
39-ARD300473 - Muffler Cover (Viper Engine)
40-ARD300492 - Nut (M6 X 1 HF GR 8.8 YLZN)
41-ARD300491 - Recoil Clutch Cup (2-Cycle Viper)
42-ARD300429 - Recoil Spacer Plate (2-Cycle)
43-ARD12088 - Hyper-Coil Assy W/Mitten Grip (Viper)
44-ARD10809 - Bolt (M5 X 20 SHCS GR 8.8 ZN)
45-ARD11169 - Bolt (M5 X .8 X 28MM SHCS GR 8.8 ZN)
46-NGKBMR6A - Spark Plug
47-ARD300482 - Engine Shroud (Viper)
48-ARD10887 - Bolt (M5 X .8 X 16 PPWH GR 8.8 YL ZN F-T)
49-ARD300439 - Bolt (M5 X .8 X 20 PPWH GR 8.8 YL ZN F-T)
50-ARD300483 - Engine Shroud End Cap
51-Engine Block *** No Longer Available
52-ARD300469 - Ignition Coil
